완전 폐쇄 녹말 체 옥수수 전분 성형기
제품 상세 정보:
| 원래 장소: | 정저우 시, 중국 |
| 브랜드 이름: | JINGHUA |
| 인증: | CE |
| 모델 번호: | GDSF2 * 10 * 100 GDSF2 * 10 * 83 GDSF1 * 10 * 83 GDSF1 * 10 * 100 |
결제 및 배송 조건:
| 최소 주문 수량: | 1개 세트 |
|---|---|
| 가격: | 협상 가능 |
| 포장 세부 사항: | 제품의 크기에 따라 나무로 되는 케이스를, 각 콘테이너 제품의 4-6 조각을 붙들 수 있습니다 주문을 받아서 만드십시오 |
| 배달 시간: | 5-14 일 지불금을 전 받기 후에 일 |
| 지불 조건: | L/C, D/P, T/T |
| 공급 능력: | 10은 / 달에서 설정합니다 |
|
상세 정보 |
|||
| 상품 이름: | 완전 폐쇄 녹말 체 | 애플리케이션: | 옥수수 전분 체 기계 |
|---|---|---|---|
| 유용한 생활: | 20 년 | 서비스: | 해외 임명 |
| 차원: | 2120*1440*2120 밀리미터 | 능력: | 4-12 T/H |
| 중량: | 850 Kg | Bin: | 맞춤화됩니다 |
| 강조하다: | 완전 폐쇄 옥수수 전분 Machine,12t/H 옥수수 전분 성형기,옥수수 전분 체 기계 |
||
제품 설명

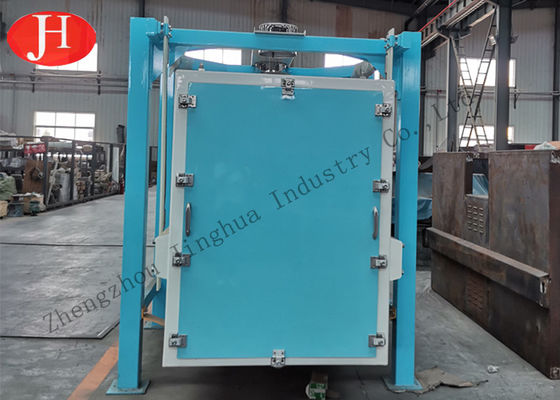

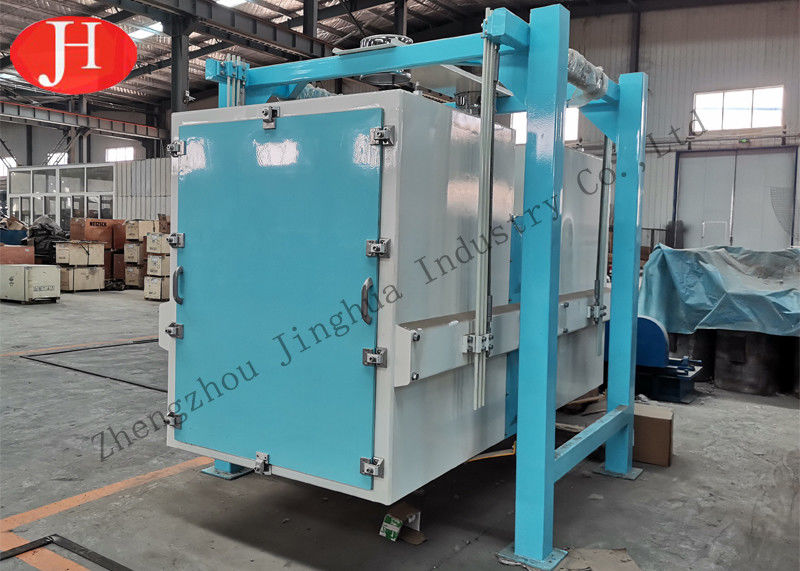

High Effect Corn Starch Grading Equipment Full Closed Dried Powder Sifter Machine
Description of corn starch sifter
Zhengzhou jinghua starch sifter is widely used in starch industry and it is proved the best sifter in starch sifting. The sieve body is composed of many layer sieve lattices and the sieve cases are made of excellent bass wood. Each layer connects closely as the form of step in the rim to ensure good sealing performance and convenient maintenance. Suspender is made from glass fiber reinforced plastic with durable life.
It is widely used for sieving dry starch before starch packing in corn starch, cassava starch, potato starch and sweet potato starch and wheat starch sago starch processing project.
Main technical parameters
| Model |
Bin (Piece) |
Number of sieves (piece) |
Capacity (t/h) |
Diameter (mm) |
Power (Kw) |
Weight (kg) |
Dimension (mm) |
| GDSF2*10*100 | 2 | 10-12 | 8-10 | Φ45-55 | 2.2 | 1200-1500 | 2530x1717x2270 |
| GDSF2*10*83 | 2 | 8-12 | 5-7 | Φ45-55 | 1.5 | 730-815 | 2120x1440x2120 |
| GDSF1*10*83 | 4.5 | 2-3 | 3-4 | Φ40 | 0.75 | 600 | 1380x1280x1910 |
| GDSF1*10*100 | 6.4 | 3-4 | 4-5 | Φ40 | 1.5 | 750 | 1620x1620x1995 |
| GDSF1*10*120 | 7.6 | 4-5 | 5-6 | Φ40 | 1.5 | 950 | 1890x1890x2400 |
Advantages of starch sifter
1. Long sieving roadSmall occupying space
2. High efficiency and large capacity
3. Energy saving and stable operation;Easy maintenance
4. Shifter screen is varied 40-120 mesh according to different material.
5. Shifter screen material is stainless steel
6. Shifter frame can be made of carbon steel or stainless steel.
Real application case
Working principle
The machine is composed of two main parts: the mild steel frame mounted with clamps for the flexible suspension rods, floor plates for mounting and the mild steel box section for the sieve frames with upper clamping by means of a metal frame and clamping pressure micrometric screws.
The drive unit with counter balance weight, with motor, pulleys, v-belt is mounted under the cabinet box section, adjustable to suit different applications. Material is fed into the top and by the machines circular motion, the fine material moves through the sieve mesh and is discharged out each sieve side to outlets, while the course material over tails and sent to separate outlets.
Our Service
Pre-sale service
1.Accept customer consultation and customize products according to customer requirements.
2.Provide customers with product process, equipment parameters and processes, and train personnel according to customer requirements.
Sale service
1.The company sent technical personnel to the scene of the on-the -spot guidance equipment installation,debugging and training operators.
2.If there is any problem during the installation, please contact the responsible person in time. We will solve the problem in time to ensure the installation progress.
After-sale service
1.Provide telephone and video support. If the customer has any problems or abnormal devices in use, you can contact us by phone. We will help the customer solve the problems by phone or video.
2.If the phone or video doesn't work, the company will send technicians to the scene to fix the problem.
3.Products purchased in our company, we provide one-year warranty and lifelong maintenance service.
Why Choose Us
Jinghua company is an engineering and technical company specializing in starch engineering design, equipment manufacturing, engineering installation and debugging, technical personnel training and other work. Has two modern large factory, engineering and technical personnel more than 30 people, can provide installation services overseas .Company for China starch industry association executive director units, executive director of the association of Chinese cassava starch industry unit.
