상세 정보 |
|||
| 서비스: | 해외 설치 | 기능: | 옥수수 청소, 분쇄, 분리, 건조 및 포장 |
|---|---|---|---|
| 처리 유형: | 마디 없는 | 원료: | 밀 옥수수 옥수수 |
| 최종 생산품: | 슈퍼 미세 옥수수 밀가루 | 주요 제품: | 밀가루 밀링 가공 기계 |
| 기계: | 옥수수 전분 제조기 | 특징: | 고효율 곡물 분쇄기 |
| 사용자 정의: | 사용자 정의 | 자동 등급: | 완전 자동 |
| 로타리 세탁기: | 로타리 세탁기 | 최종 제품: | 옥수수 전분 |
| 전원 공급 장치: | 380V/50Hz | ||
제품 설명

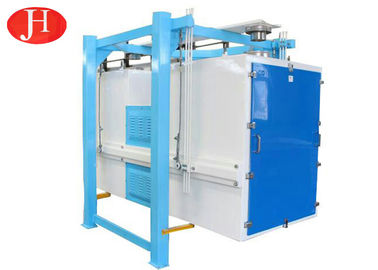

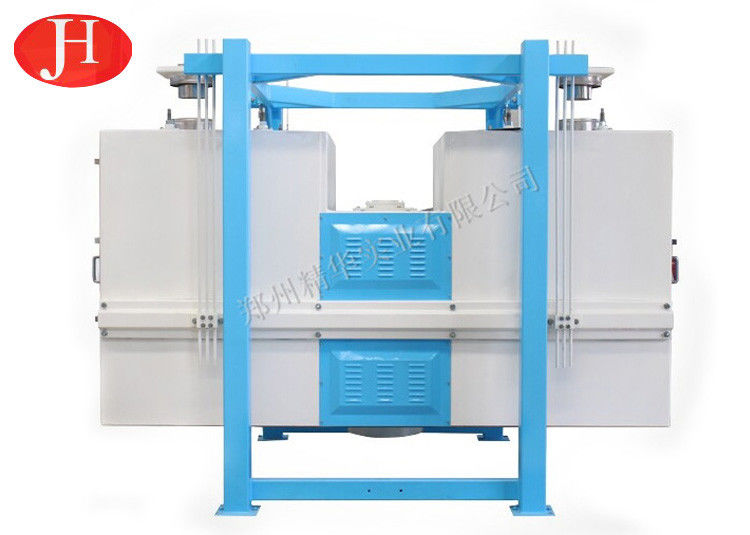

The drive unit with counter balance weight, with motor, pulleys, v-belt is mounted under the cabinet box section, adjustable to suit different applications. Material is fed into the top and by the machines circular motion, the fine material moves through the sieve mesh and is discharged out each sieve side to outlets, while the course material over tails and sent to separate outlets.
Main technical parameters
|
Model |
Bin (Piece) |
Number of sieves (piece) |
Capacity (t/h) |
Diameter (mm) |
Power (Kw) |
Weight (kg) |
Dimension (mm) |
|
GDSF2*10*100 |
2 |
10-12 |
8-10 |
Φ45-55 |
2.2 |
1200-1500 |
2530x1717x2270 |
|
GDSF2*10*83 |
2 |
8-12 |
5-7 |
Φ45-55 |
1.5 |
730-815 |
2120x1440x2120 |
|
GDSF1*10*83 |
4.5 |
2-3 |
3-4 |
Φ40 |
0.75 |
600 |
1380x1280x1910 |
|
GDSF1*10*100 |
6.4 |
3-4 |
4-5 |
Φ40 |
1.5 |
750 |
1620x1620x1995 |
|
GDSF1*10*120 |
7.6 |
4-5 |
5-6 |
Φ40 |
1.5 |
950 |
|
licenseand we have done export business over 20 years professionally.
Q2.What is your main business?
A: Zhengzhou jinghua is devoted to starch processing machine. The machine of starch processing line , such as : cassava starch line , cassava flour line , potato starch line , sweet potato line , wheat starch ,sago line and garri line
Q3:Where is your factory located? How can I visit there?
A: Our add: Zhengyun Road and Guanggu Road intersection , Guangwu Town , Zhengzhou City , Henan Province , China.
Warmly welcome to visit us!
Q4: Are your products can be assured ?
A: Our machines are all passed ISO9001:2001 and have CE certificate by SGS, TUV.
Q5: If we show you our layout of factory, can you help us to design the whole process line?
A : Yes, our experienced engineers and technical employees can help you to arrange the layout and installation of whole process line based on your real situation;
Q6: If we have samples of new products, can you help us to analysis and design the machine?
A: Yes, Our technical department can help you to analysis, design and test the new products you offered.
